Solid Tantalum Capacitor, 220µF capacitance, 10V DC rated voltage, and 10% tolerance. Features a 7343 metric case code (2917 imperial), measuring 7.3mm x 4.3mm x 2.8mm. Offers a low ESR of 600mΩ and a maximum operating temperature of 125°C. This surface mount component is RoHS compliant and supplied on tape and reel.
Package2917
Voltage10V
Capacitance220uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Vishay 293D227X9010D2TE3 technical specifications.
General
Capacitance
220uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
600mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Leakage Current
22uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Q Factor
8
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
500mA
RoHS Compliant
Yes
Series
TANTAMOUNT®, 293D
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Weight
0.023634oz
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Vishay 293D227X9010D2TE3 Datasheet
Download the complete datasheet for Vishay 293D227X9010D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

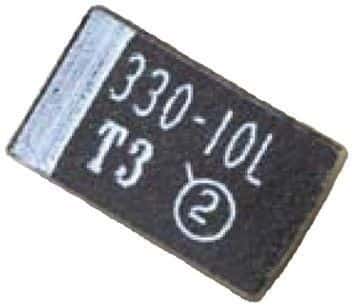

Product Images
