Solid tantalum capacitor, 33µF capacitance, 25V DC rated voltage, 10% tolerance. Features a 2917 (7343 metric) surface mount case code with dimensions of 7.3mm length, 4.3mm depth, and 2.8mm height. Offers a low ESR of 700mΩ, dissipation factor of 6%, and leakage current of 8.3µA. Operates across a wide temperature range from -55°C to 125°C, with a ripple current rating of 460mA. RoHS compliant and supplied on tape and reel.
Package2917
Voltage25V
Capacitance33uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Vishay 293D336X9025D2TE3 technical specifications.
General
Capacitance
33uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
700mR
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Leakage Current
8.3uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
460mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
10%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D336X9025D2TE3 Datasheet
Download the complete datasheet for Vishay 293D336X9025D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

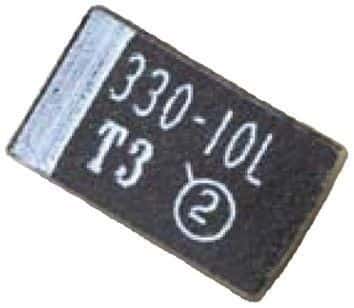

Product Images
