Solid tantalum capacitor, 33µF capacitance, 6.3V DC rated voltage, 10% tolerance. Features a 1206 (3216 metric) surface mount case code, 1.6mm height, 3.2mm length, and 1.6mm depth. Operating temperature range from -55°C to 125°C, with a dissipation factor of 14% and ESR of 2.5Ω. RoHS compliant, polarized, and suitable for general purpose applications.
Package1206
Voltage6.3V
Capacitance33uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Vishay 293D336X96R3A2TE3 technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Depth | 1.6mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 14% |
| ESR (Equivalent Series Resistance) | 2.5R |
| Features | General Purpose |
| Height | 1.6mm |
| Height - Seated (Max) | 0.071inch |
| Lead Free | Lead Free |
| Leakage Current | 2uA |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 170mA |
| RoHS Compliant | Yes |
| Series | TANTAMOUNT® 293D |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Weight | 0.000571oz |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 293D336X96R3A2TE3 Datasheet
Download the complete datasheet for Vishay 293D336X96R3A2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

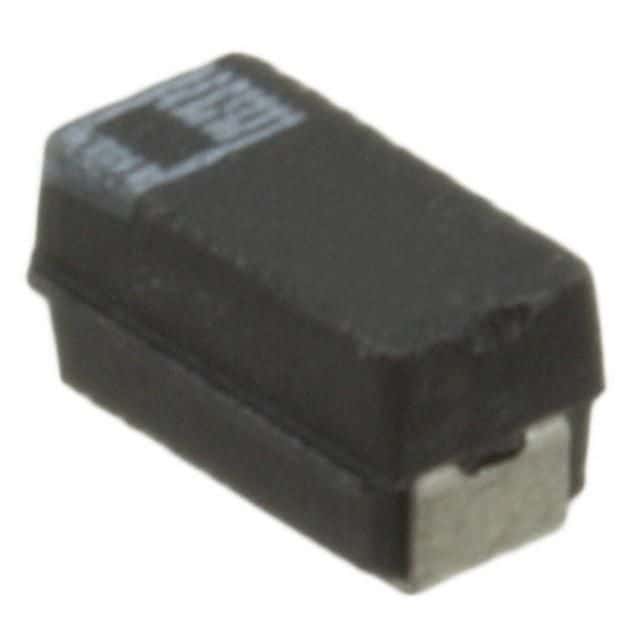

Product Images
