Solid tantalum capacitor, 33µF capacitance, 6.3V DC rated voltage, 10% tolerance. Features a 1411 (3528 metric) surface mount case with a 1.9Ω ESR and 170mA ripple current. Operates from -55°C to 125°C with 2µA leakage current. RoHS compliant and packaged on tape and reel.
Package1411
Voltage6.3V
Capacitance33uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Vishay 293D336X96R3B2TE3 technical specifications.
General
Capacitance
33uF
Case Code (Imperial)
1411
Case Code (Metric)
3528
Package/Case
1411
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.9R
Features
General Purpose
Height
1.9mm
Height - Seated (Max)
0.083inch
Lead Free
Lead Free
Leakage Current
2uA
Length
3.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Q Factor
5
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
170mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Weight
0.002293oz
Width
0.11inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D336X96R3B2TE3 Datasheet
Download the complete datasheet for Vishay 293D336X96R3B2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

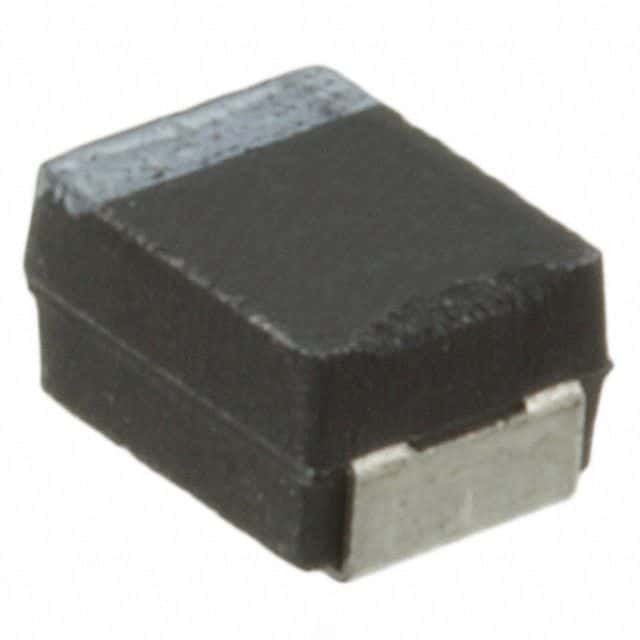

Product Images
