Solid Tantalum Capacitor, 4.7µF capacitance, 50V DC rated voltage, and 20% tolerance. Features a 1.2Ω ESR and 125°C maximum operating temperature. This surface mount component is housed in a 7343 metric case code (2917 imperial) with dimensions of 7.3mm x 4.3mm x 2.8mm. Designed for general purpose applications, it offers a 270mA ripple current and is RoHS compliant.
Package2917
Voltage50V
Capacitance4.7uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Vishay 293D475X9050D2TE3 technical specifications.
General
Capacitance
4.7uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.2R
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Leakage Current
2.4uA
Length
7.3mm
Life (Hours)
1000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
270mA
RoHS Compliant
Yes
Series
TANTAMOUNT®, 293D
Termination
SMD/SMT
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Weight
0.023634oz
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Vishay 293D475X9050D2TE3 Datasheet
Download the complete datasheet for Vishay 293D475X9050D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

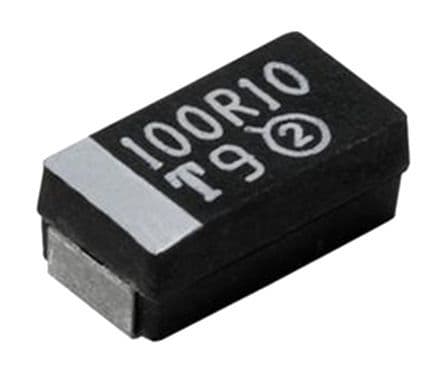

Product Images
