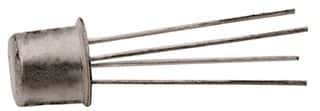

The 2N4416A is a N-CHANNEL JFET transistor with a drain to source breakdown voltage of 35V and a drain to source resistance of 150R. It has a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. The transistor is packaged in a TO-72-4 package and is mounted through a hole. It has a maximum power dissipation of 300mW and a current rating of 10mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay 2N4416A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-72-4 |
| Continuous Drain Current (ID) | 15mA |
| Current Rating | 10mA |
| Drain to Source Breakdown Voltage | 35V |
| Drain to Source Resistance | 150R |
| Drain to Source Voltage (Vdss) | 35V |
| Gate to Source Voltage (Vgs) | -35V |
| Height | 5.33mm |
| Input Capacitance | 4pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Polarity | N-CHANNEL |
| Radiation Hardening | No |
| RoHS Compliant | No |
| RoHS | Not CompliantNo |
