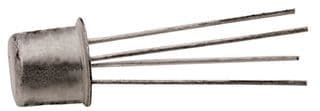

The 2N4416A-E3 is a N-CHANNEL JFET with a TO-72-4 package, suitable for operating temperatures between -55°C and 150°C. It has a maximum power dissipation of 300mW and a drain to source resistance of 150R. The device is lead free and RoHS compliant, with a packaging quantity of 200 units in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay 2N4416A-E3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-72-4 |
| Drain to Source Resistance | 150R |
| Drain to Source Voltage (Vdss) | 10V |
| Gate to Source Voltage (Vgs) | -35V |
| Input Capacitance | 4pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Polarity | N-CHANNEL |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Vishay 2N4416A-E3 to view detailed technical specifications.
