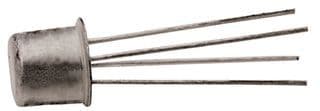

P-channel, through-hole mounted JFET designed for general-purpose small signal applications. Features a continuous drain current of 50mA and a drain-to-source breakdown voltage of -40V. Offers a maximum drain-source on-resistance of 250 Ohms and an input capacitance of 3.5pF. Operates within a temperature range of -55°C to 150°C with a maximum power dissipation of 375mW. Packaged in a hermetically sealed TO-72 metal can with tin-matte plated contacts.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay 3N163-E3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-72 |
| Contact Plating | Tin, Matte |
| Continuous Drain Current (ID) | 50mA |
| Drain to Source Breakdown Voltage | -40V |
| Drain to Source Resistance | 250R |
| Drain to Source Voltage (Vdss) | 40V |
| Drain-source On Resistance-Max | 250R |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 3.5pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 375mW |
| Mount | Through Hole |
| Nominal Vgs | -2.5V |
| Number of Channels | 1 |
| Package Quantity | 200 |
| Packaging | Bulk |
| Polarity | P-CHANNEL |
| Power Dissipation | 375mW |
| Rds On Max | 250R |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Threshold Voltage | -2.5V |
| Turn-Off Delay Time | 25ns |
| Turn-On Delay Time | 5ns |
| RoHS | Compliant |
