Technical Specifications
Vishay 534-1-1-102 technical specifications.
General
| Diameter | 22.2mm |
| Lead Free | Lead Free |
| Linearity | 0.25% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Gangs | 1 |
| Number of Turns | 10 |
| Packaging | Box |
| Reach SVHC Compliant | Unknown |
| Resistance | 1kR |
| Resistance Tolerance | 5% |
| Taper | Linear |
| Termination | Solder |
| Tolerance | 5% |
| Type | Potentiometer |
| DC Rated Voltage | 44.7V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 534-1-1-102 Datasheet
Download the complete datasheet for Vishay 534-1-1-102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

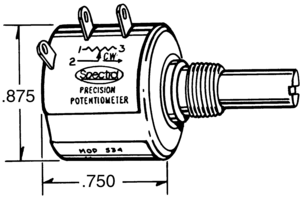

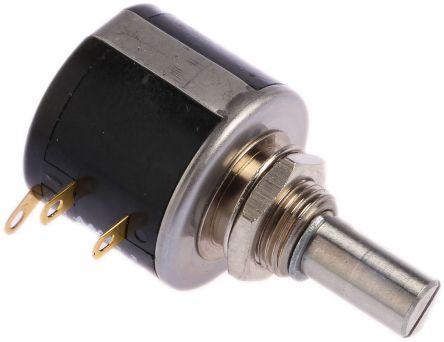

Product Images
