The 534-1-1-503 is a lead free panel mount variable resistor with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It has a resistance of 50kΩ and a tolerance of 5%. The resistor is packaged in bulk and terminated with solder. It has a diameter of 22.2mm.
Resistance50kR
MountingPanel
Quick Jump:
Technical Specifications
Vishay 534-1-1-503 technical specifications.
General
| Diameter | 22.2mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Packaging | Bulk |
| Resistance | 50kR |
| Termination | Solder |
| Tolerance | 5% |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 534-1-1-503 Datasheet
Download the complete datasheet for Vishay 534-1-1-503 to view detailed technical specifications.
No datasheet is available for this part.

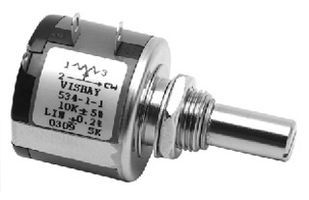

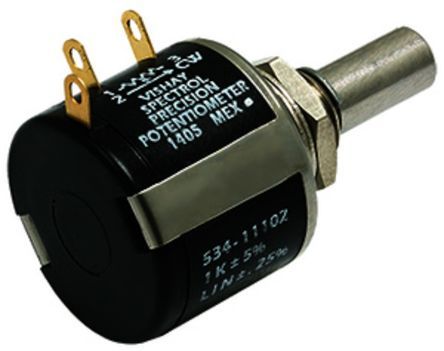

Product Images
