Radial leaded ceramic capacitor with 1nF capacitance and 1kV DC rated voltage. Features X5F dielectric, 10% tolerance, and a maximum operating temperature of 105°C. Designed for general purpose applications with a 6.4mm lead pitch and 0.51mm lead diameter. Through-hole mounting with tin plated radial leads.
PackageRadial
Voltage1kV
Capacitance1nF
Voltage Rating1kV
Quick Jump:
Technical Specifications
Vishay 562R10TSD10 technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
1nF
Package/Case
Radial
Construction
RADIAL
Contact Plating
Tin
Depth
4mm
Diameter
7.4mm
Dielectric
X5F
Dissipation Factor
2%
Height - Seated (Max)
0.125inch
Lead Diameter
0.51mm
Lead Free
Lead Free
Lead Pitch
6.4mm
Lead/Base Style
Kinked
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB, Radial
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Cera-Mite 562R
Termination
Radial
Tolerance
10%
Voltage
1kV
Voltage Rating
1kV
DC Rated Voltage
1kV
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Vishay 562R10TSD10 Datasheet
Download the complete datasheet for Vishay 562R10TSD10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

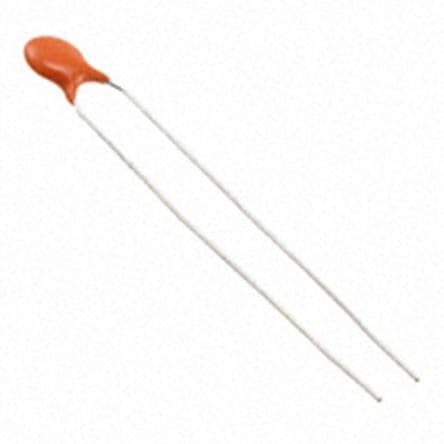

Product Images
