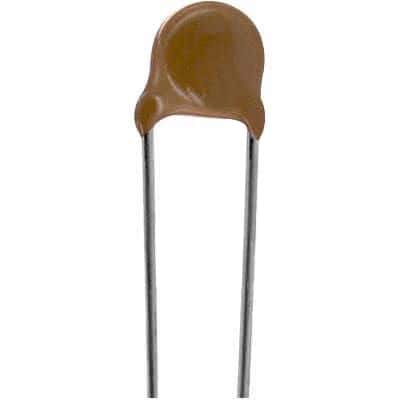

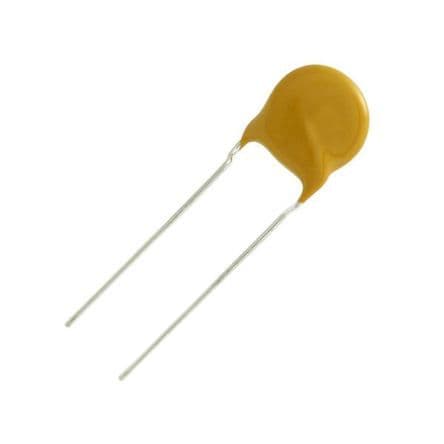

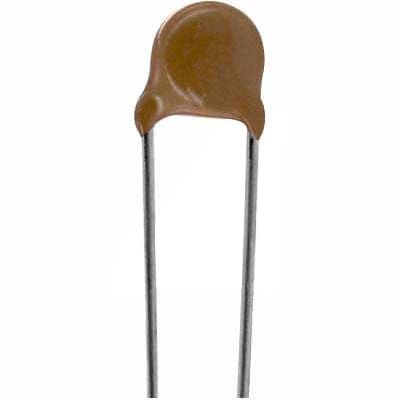

Single layer ceramic capacitor with 1nF capacitance and 3kV DC rated voltage. Features X7R dielectric, 10% tolerance, and a maximum operating temperature of 105°C. Radial package with 6.4mm lead pitch and 10.2mm diameter. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Voltage3kV
Capacitance1nF
Voltage Rating3kV
Quick Jump:
Technical Specifications
Vishay 564R30TSD10 technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
1nF
Package/Case
Radial
Construction
RADIAL
Contact Plating
Tin
Depth
4.4mm
Diameter
10.2mm
Dielectric
X7R
Dissipation Factor
0.2%
Lead Diameter
0.81mm
Lead Free
Lead Free
Lead Pitch
6.4mm
Lead/Base Style
Straight
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole, PCB, Radial
Package Quantity
250
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
Cera-Mite 564R
Termination
Radial
Tolerance
10%
Voltage
3kV
Voltage Rating
3kV
DC Rated Voltage
3kV
Compliance
RoHS
Compliant
Datasheet
Vishay 564R30TSD10 Datasheet
Download the complete datasheet for Vishay 564R30TSD10 to view detailed technical specifications.
