Single Layer Ceramic Capacitor, 1.8nF capacitance, 3kV DC rated voltage, 1kV AC rated voltage, X7R dielectric, 10% tolerance. Features radial mounting, tin contact plating, and a 6.4mm lead pitch. Operates from -25°C to 105°C with a 0.2% dissipation factor. Packaged in bulk for general purpose applications.
PackageRadial
Voltage3kV
Capacitance1.8nF
Voltage Rating3kV
Quick Jump:
Technical Specifications
Vishay 564R30TSD18 technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Capacitance | 1.8nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Contact Plating | Tin |
| Depth | 4.7mm |
| Diameter | 13.5mm |
| Dielectric | X7R |
| Dissipation Factor | 0.2% |
| Height - Seated (Max) | 0.72inch |
| Lead Diameter | 0.81mm |
| Lead Pitch | 6.4mm |
| Lead/Base Style | Straight |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB, Radial |
| Package Quantity | 250 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | Cera-Mite 564R |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 3kV |
| Voltage Rating | 3kV |
| Voltage Rating (AC) | 1kV |
| DC Rated Voltage | 3kV |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 564R30TSD18 Datasheet
Download the complete datasheet for Vishay 564R30TSD18 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

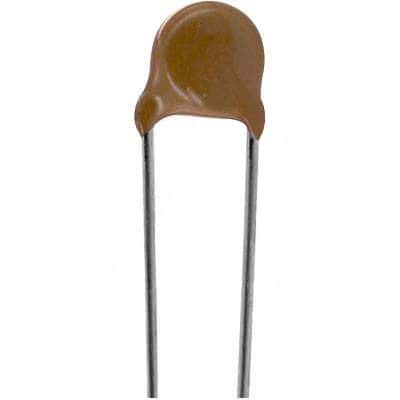

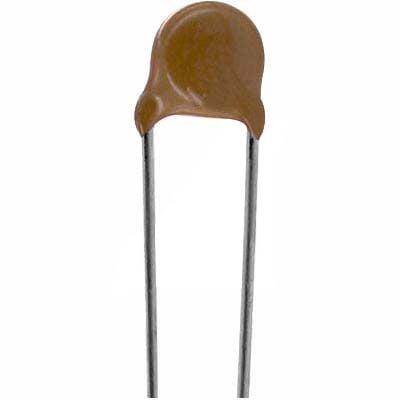

Product Images
