Solid tantalum capacitor, 10µF capacitance, 25V voltage rating, and 20% tolerance. Features a 6032 metric case size (6mm x 3.2mm x 2.5mm) with inward L termination for surface mount applications. Offers a low ESR of 450mΩ and a maximum operating temperature of 125°C. This general-purpose component is lead-free and RoHS compliant, supplied on tape and reel.
PackageMolded
Capacitance10uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay 593D106X0025C2TE3 technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 2412 |
| Case Code (Metric) | 6032 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 3.2mm |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 450mR |
| Features | General Purpose |
| Height | 2.5mm |
| Height - Seated (Max) | 0.11inch |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| RoHS Compliant | Yes |
| Series | TANTAMOUNT® 593D |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 200kV |
| Width | 0.126inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 593D106X0025C2TE3 Datasheet
Download the complete datasheet for Vishay 593D106X0025C2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

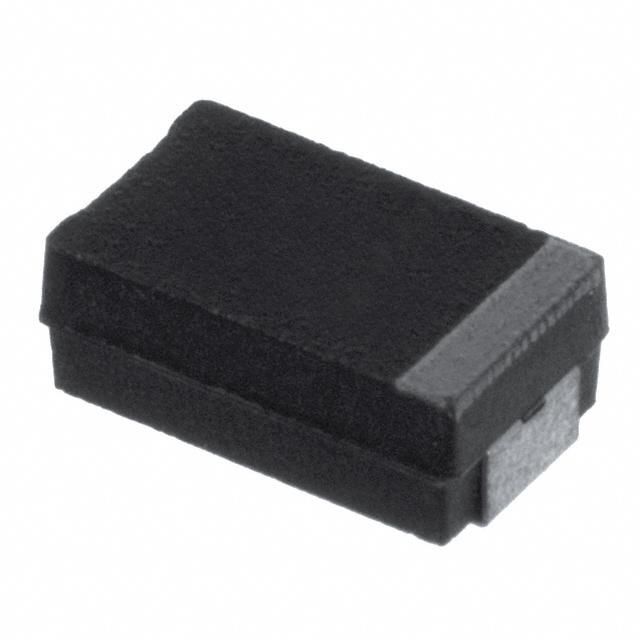

Product Images
