Solid tantalum capacitor, 10µF capacitance, 35V DC rated voltage, 10% tolerance. Features a 2917 (7343 metric) surface mount chip package with a flat construction. Operating temperature range from -55°C to 125°C, with a maximum leakage current of 3.5µA and ESR of 300mΩ. RoHS compliant and lead-free.
Package2917
Voltage35V
Capacitance10uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Vishay 593D106X9035D2TE3 technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
300mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Leakage Current
3.5uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
710uA
RoHS Compliant
Yes
Series
TANTAMOUNT®, 593D
Termination
SMD/SMT
Tolerance
10%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Vishay 593D106X9035D2TE3 Datasheet
Download the complete datasheet for Vishay 593D106X9035D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

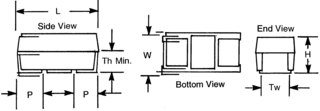

Product Images
