Solid Tantalum Capacitor, 220µF capacitance, 10V DC rated voltage, and 10% tolerance. Features 100mΩ ESR, 8% dissipation factor, and 22µA leakage current. Surface mountable in a 7343-43 (2917) E case, measuring 7.3mm x 4.3mm x 4mm. Operating temperature range from -55°C to 125°C.
Package2917
Voltage10V
Capacitance220uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Vishay 593D227X9010E2TE3 technical specifications.
General
Capacitance
220uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
100mR
Features
General Purpose
Height
4mm
Lead Free
Lead Free
Leakage Current
22uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
1.28mA
RoHS Compliant
Yes
Series
TANTAMOUNT®, 593D
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Vishay 593D227X9010E2TE3 Datasheet
Download the complete datasheet for Vishay 593D227X9010E2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

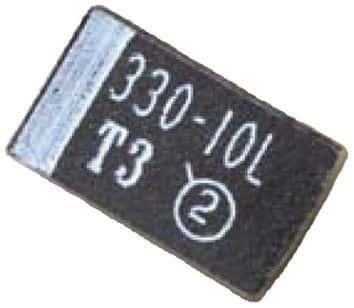

Product Images
