Solid tantalum capacitor, 100µF capacitance, 20V DC rated voltage, and 20% tolerance. Features 180mΩ ESR, 20µA leakage current, and a maximum operating temperature of 125°C. Surface mountable with a 7343 metric case code (2917 imperial), measuring 7.4mm x 4.3mm x 2.8mm. RoHS compliant and supplied on tape and reel.
PackageConformal Coated
Capacitance100uF
Voltage Rating20V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Vishay 595D107X0020D2T technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
Conformal Coated
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
180mR
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Leakage Current
20uA
Length
7.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
1.34mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 595D
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
20V
DC Rated Voltage
20V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Vishay 595D107X0020D2T Datasheet
Download the complete datasheet for Vishay 595D107X0020D2T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

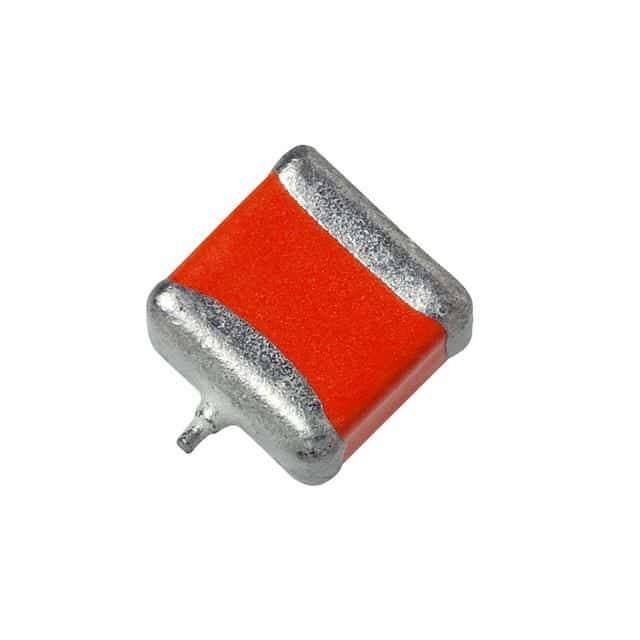

Product Images
