Solid tantalum capacitor, 220µF capacitance, 20V DC rated voltage, 10% tolerance. Features 80mΩ ESR, 44µA leakage current, and 1.8A ripple current. Surface mount, 2924 chip package, operating temperature range of -55°C to 125°C. RoHS compliant, general purpose, polarized construction.
Package3024
Capacitance220uF
Voltage Rating20V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay 597D227X9020R2T technical specifications.
General
Capacitance
220uF
Case Code (Imperial)
2917
Case Code (Metric)
7660
Package/Case
3024
Construction
Flat
Depth
6mm
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
80mR
Features
General Purpose
Height
3.6mm
Lead Free
Lead Free
Leakage Current
44uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
1.8A
RoHS Compliant
Yes
Series
TANTAMOUNT®, 597D
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
20V
DC Rated Voltage
20V
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Vishay 597D227X9020R2T Datasheet
Download the complete datasheet for Vishay 597D227X9020R2T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

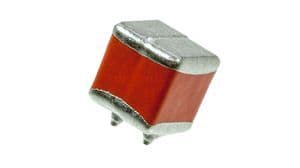

Product Images
