Through-hole wirewound resistor with 0.24 ohm resistance and 5% tolerance. Features a 3W power rating, axial leaded termination, and a cylindrical ceramic construction with conformal coating. Operates from 0°C to 275°C with a voltage rating of 850mV. Includes flame retardant coating and tin contact plating, packaged in an ammo pack.
PackageConformal
Resistance240mR
Voltage Rating850mV
Quick Jump:
Technical Specifications
Vishay AC03000002407JAC00 technical specifications.
General
Package/Case
Conformal
Construction
Cylindrical
Contact Plating
Tin
Diameter
4.8mm
Features
Flame Retardant Coating
Lead Diameter
0.8mm
Lead Free
Lead Free
Length
13mm
Max Operating Temperature
275°C
Min Operating Temperature
0°C
Max Power Dissipation
3W
Military Standard
Not
Number of Terminations
2
Package Quantity
500
Packaging
Ammo Pack
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
240mR
Resistance Tolerance
5%
Resistor Type
Wirewound, Ceramic
RoHS Compliant
Yes
Series
AC
Termination
Axial
Tolerance
5%
Voltage Rating
850mV
DC Rated Voltage
850mV
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
Vishay AC03000002407JAC00 Datasheet
Download the complete datasheet for Vishay AC03000002407JAC00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

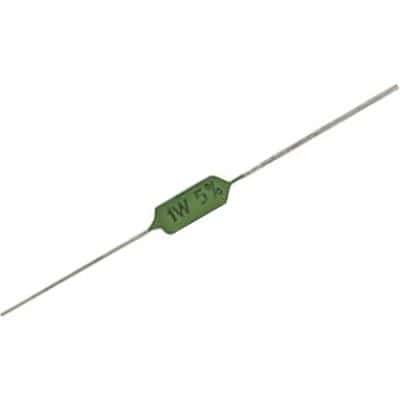

Product Images
