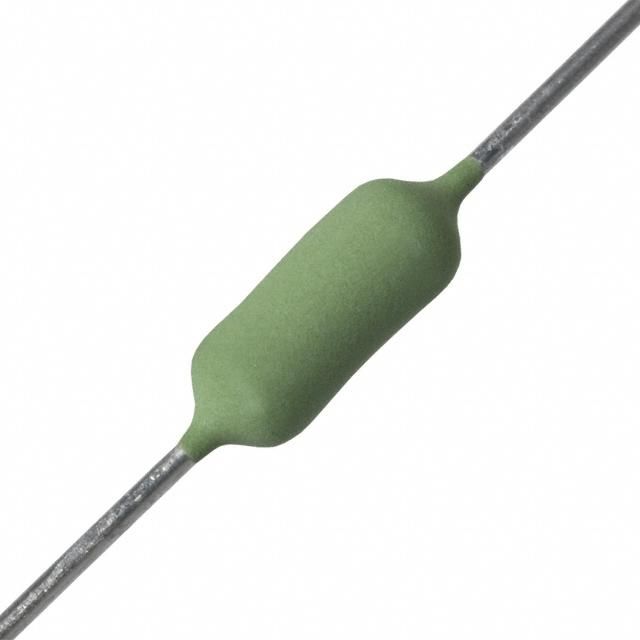

Through-hole wirewound resistor with 5 Ohm resistance and 5% tolerance. Features 3W maximum power dissipation and a 4V voltage rating. Cylindrical construction with axial terminations, 4.8mm diameter, and 13mm length. Operates from 0°C to 275°C, with a flame retardant coating and tin contact plating. Packaged in an ammo pack.
PackageConformal
Resistance5R
Voltage Rating4V
Quick Jump:
Technical Specifications
Vishay AC03000005008JAC00 technical specifications.
General
Package/Case
Conformal
Construction
Cylindrical
Contact Plating
Tin
Diameter
4.8mm
Features
Flame Retardant Coating
Lead Diameter
0.8mm
Length
13mm
Max Operating Temperature
275°C
Max Power Dissipation
3W
Military Standard
Not
Min Operating Temperature
0°C
Number of Terminations
2
Package Quantity
1
Packaging
Ammo Pack
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
5R
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
AC
Termination
Axial
Tolerance
5%
Voltage Rating
4V
DC Rated Voltage
4V
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
Vishay AC03000005008JAC00 Datasheet
Download the complete datasheet for Vishay AC03000005008JAC00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
