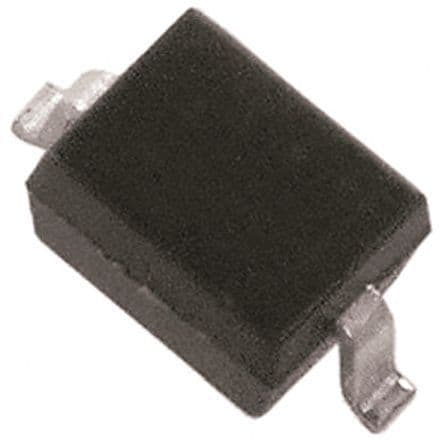

The BAS16WS-E3-18 is a general purpose rectifier diode with a maximum reverse voltage of 75V and a maximum forward current of 250mA. It has a maximum power dissipation of 200mW and a maximum operating temperature range of -55°C to 150°C. The diode is packaged in a SOD-323-2 package and is lead free. It is also RoHS compliant and meets the requirements of AEC-Q101 for automotive applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BAS16WS-E3-18 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Average Rectified Current | 250mA |
| Package/Case | SOD-323-2 |
| Contact Plating | Tin |
| Forward Current | 250mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Leakage Current | 1uA |
| Max Reverse Voltage (DC) | 75V |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2A |
| Reverse Recovery Time | 6ns |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Weight | 0.000152oz |
| RoHS | Compliant |
