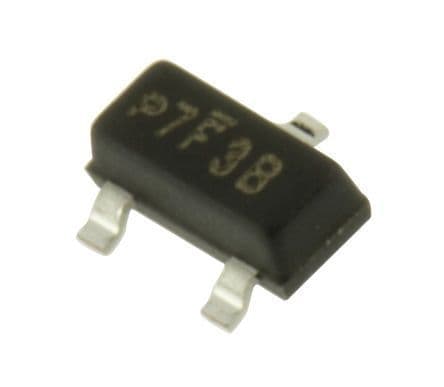

Dual series small signal Schottky diode for general purpose rectification. Features a maximum repetitive reverse voltage of 70V and a forward current of 200mA. Operates across a temperature range of -55°C to 125°C with a maximum power dissipation of 200mW. Packaged in a SOT-23 surface mount case, this RoHS compliant component offers a reverse recovery time of 5ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BAS70-04-E3-08 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay BAS70-04-E3-08 technical specifications.
| Average Rectified Current | 200mA |
| Package/Case | SOT-23 |
| Color | Black |
| Contact Material | Bronze |
| Forward Current | 200mA |
| Height | 6.02mm |
| Lead Free | Lead Free |
| Length | 32.31mm |
| Max Forward Surge Current (Ifsm) | 600mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Max Repetitive Reverse Voltage (Vrrm) | 70V |
| Max Reverse Current | 100nA |
| Max Reverse Voltage (DC) | 70V |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 600mA |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 5ns |
| RoHS Compliant | Yes |
| Weight | 0.00031oz |
| Width | 19.05mm |
| RoHS | Compliant |
