PackageSOT-23
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Vishay BAS70-05-V-GS08 technical specifications.
General
Average Rectified Current
200mA
Package/Case
SOT-23
Contact Plating
Tin, Matte
Forward Current
200mA
Height
0.038inch
Lead Free
Lead Free
Length
0.122inch
Max Forward Surge Current (Ifsm)
600mA
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
70V
Max Reverse Current
100nA
Max Reverse Leakage Current
100nA
Max Reverse Voltage (DC)
70V
Max Surge Current
600mA
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
600mA
Power Dissipation
200mW
Reverse Recovery Time
5ns
RoHS Compliant
Yes
Width
0.056inch
Compliance
RoHS
Compliant
Datasheet
Vishay BAS70-05-V-GS08 Datasheet
Download the complete datasheet for Vishay BAS70-05-V-GS08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

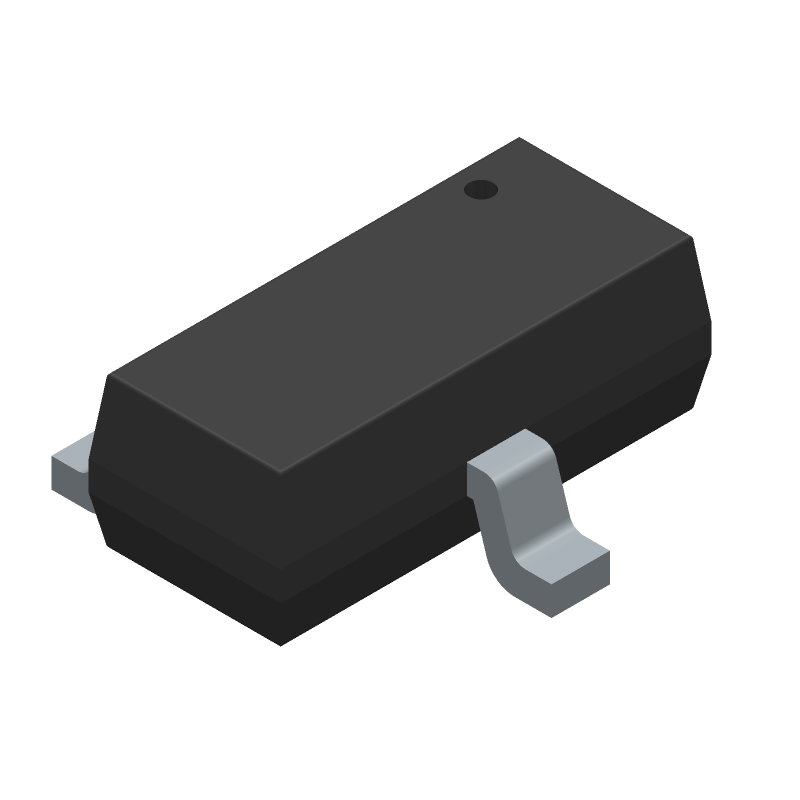

Product Images
