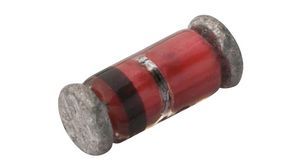

Surface mount rectifier diode featuring Schottky technology. This general-purpose rectifier offers an average rectified current of 200mA and a maximum repetitive reverse voltage of 30V. Key specifications include a maximum forward surge current of 600mA, a reverse recovery time of 5ns, and a maximum reverse leakage current of 2µA. Operating temperature range spans from -55°C to 125°C. The component is RoHS compliant and lead-free.
Sign in to ask questions about the Vishay BAS85-GS08 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay BAS85-GS08 technical specifications.
| Average Rectified Current | 200mA |
| Current | 200mA |
| Current Rating | 200A |
| Diameter | 1.6mm |
| Forward Current | 200mA |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 3.7mm |
| Max Forward Surge Current (Ifsm) | 600mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 2uA |
| Max Reverse Leakage Current | 2uA |
| Max Reverse Voltage (DC) | 30V |
| Max Surge Current | 600mA |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 600mA |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 5ns |
| RoHS Compliant | Yes |
| Voltage | 30V |
| Width | 1.6mm |
| RoHS | Compliant |
