Radial leaded film capacitor with 10nF capacitance and 630V DC / 310V AC voltage rating. Features PP dielectric, 20% tolerance, and tin-matte contact plating. Designed for through-hole mounting with a 10mm lead pitch. Operating temperature range from -55°C to 110°C. RoHS compliant.
PackageRadial
Voltage630V
Capacitance10nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay BFC233620103 technical specifications.
General
| Capacitance | 10nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Contact Plating | Tin, Matte |
| Depth | 4mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 10mm |
| Height - Seated (Max) | 0.394inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Length | 12.5mm |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MKP336 2 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 630V |
| Voltage Rating (AC) | 310V |
| DC Rated Voltage | 630V |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay BFC233620103 Datasheet
Download the complete datasheet for Vishay BFC233620103 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

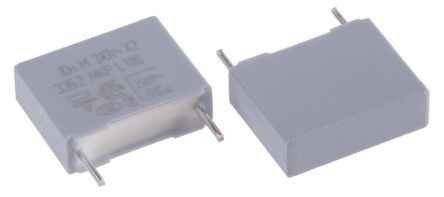

Product Images
