Radial leaded, through-hole mount polypropylene film capacitor with 220nF capacitance and 1kV DC rated voltage. Features a 20% tolerance, 105°C maximum operating temperature, and tin, matte contact plating. This RoHS compliant component is designed for general applications.
PackageRadial
Voltage440V
Capacitance220nF
Voltage Rating1kV
Quick Jump:
Technical Specifications
Vishay BFC233810224 technical specifications.
General
| Capacitance | 220nF |
| Package/Case | Radial |
| Contact Plating | Tin, Matte |
| Depth | 10mm |
| Diameter | 10mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 19.5mm |
| Height - Seated (Max) | 0.768inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 22.5mm |
| Length | 26mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MKP338 1 X1 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 440V |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 440V |
| DC Rated Voltage | 1kV |
| Weight | 0.239863oz |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay BFC233810224 Datasheet
Download the complete datasheet for Vishay BFC233810224 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

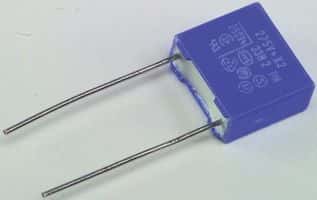

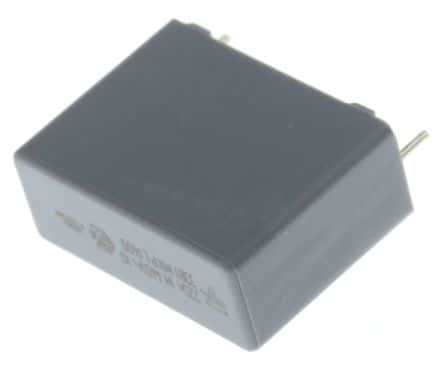

Product Images
