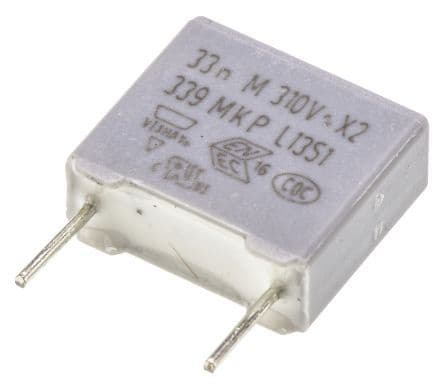

Metallized film capacitor featuring polypropylene dielectric, 33nF capacitance, and 630V DC / 310V AC voltage rating. This radial leaded component offers a 20% tolerance and operates across a wide temperature range from -55°C to 110°C. Designed for through-hole mounting with a 7.5mm lead pitch and tin-matte plated contacts, it is RoHS compliant.
PackageRadial
Voltage310V
Capacitance33nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay BFC233920333 technical specifications.
General
| Capacitance | 33nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Contact Plating | Tin, Matte |
| Depth | 4mm |
| Dielectric | PP |
| Dielectric Material | PP |
| Height | 9mm |
| Height - Seated (Max) | 0.354inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Length | 10mm |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1500 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | MKP339 X2 |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 310V |
| Voltage Rating (AC) | 310V |
| DC Rated Voltage | 630V |
| Width | 0.157inch |
Compliance
| RoHS | Compliant |
