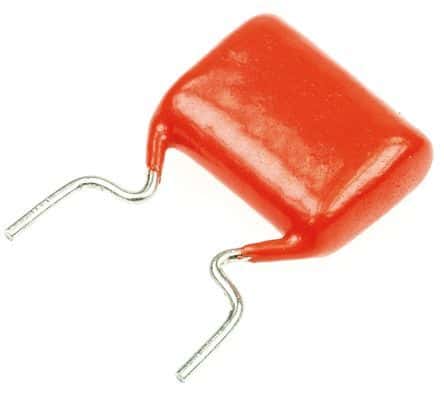

Radial metallized polyester film capacitor with 100nF capacitance and 10% tolerance. Features a 250V DC rating and 160V AC rating, operating from -55°C to 105°C. Through-hole mounting with radial leads, 10mm pitch, and 0.6mm diameter. Tin-matte plated contacts and a PET dielectric ensure reliable performance. RoHS compliant and lead-free construction.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BFC236845104 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay BFC236845104 technical specifications.
| Capacitance | 100nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Contact Plating | Tin, Matte |
| Depth | 4.7mm |
| Diameter | 4.7mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 13.7mm |
| Height - Seated (Max) | 0.539inch |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Length | 5mm |
| Lead Pitch | 10mm |
| Length | 12.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MKT368 |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 160V |
| DC Rated Voltage | 250V |
| Width | 4.7mm |
| RoHS | Compliant |
