Metallized film capacitor with polyester dielectric, offering 4.7nF capacitance and a 10% tolerance. Features radial leads for through-hole mounting, a 400V DC rated voltage, and a 220V AC voltage rating. Operating temperature range spans from -55°C to 105°C, with tin-matte contact plating and a 10mm lead pitch. This RoHS compliant component is supplied in bulk packaging.
PackageRadial
Voltage400V
Capacitance4.7nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay BFC236855472 technical specifications.
General
| Capacitance | 4.7nF |
| Package/Case | Radial |
| Construction | RADIAL |
| Contact Plating | Tin, Matte |
| Depth | 4.1mm |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 13.2mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Length | 12.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | MKT368 |
| Termination | Radial |
| Tolerance | 10% |
| Voltage | 400V |
| Voltage Rating (AC) | 220V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay BFC236855472 Datasheet
Download the complete datasheet for Vishay BFC236855472 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

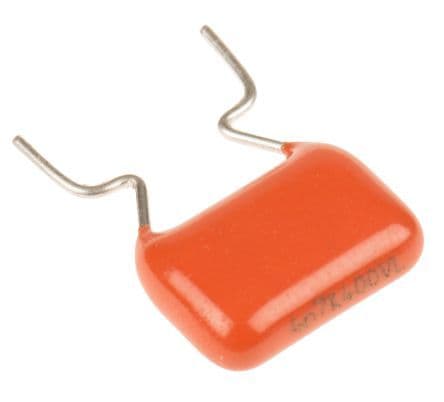

Product Images
