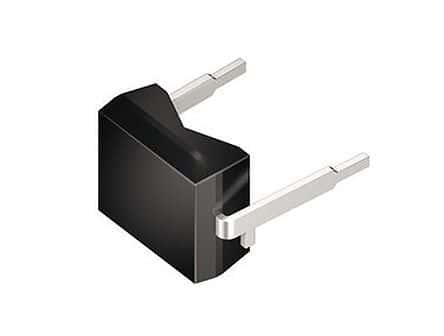

PIN photodiode chip for optical sensing, featuring a 950nm wavelength sensitivity. This through-hole mount component offers a 60V maximum reverse voltage and 215mW power dissipation. With a 70pF capacitance and 100ns fall time, it operates within a -40°C to 100°C temperature range. The DIP package has tin plating and a 130° viewing angle.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BP104 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay BP104 technical specifications.
| Capacitance | 70pF |
| Package/Case | DIP |
| Contact Plating | Tin |
| Diode Type | PIN |
| Fall Time | 100ns |
| Height | 2mm |
| Lead Free | Lead Free |
| Length | 4.65mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 215mW |
| Max Reverse Voltage (DC) | 60V |
| Mount | Through Hole, PCB |
| Packaging | Bulk |
| Power Dissipation | 215mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 60V |
| Reverse Voltage (DC) | 60V |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Wavelength | 950nm |
| Width | 4.3mm |
| RoHS | Compliant |
