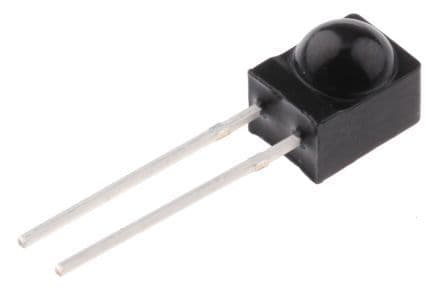

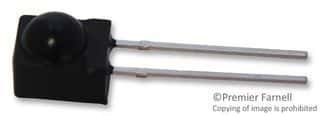

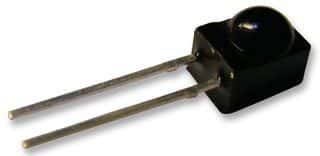

PIN photodiode module with 950nm wavelength and 0.6A/W responsivity. Features a 60V maximum reverse voltage, 50mA forward current, and 215mW power dissipation. Operates between -40°C and 100°C with a 70pF capacitance and 100ns fall time. Packaged in a radial, through-hole mount for PCB applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BPV22F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay BPV22F technical specifications.
| Capacitance | 70pF |
| Package/Case | Radial |
| Diode Type | PIN |
| Fall Time | 100ns |
| Forward Current | 50mA |
| Height | 6mm |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 215mW |
| Max Reverse Voltage (DC) | 60V |
| Mount | Through Hole, PCB |
| Packaging | Bulk |
| Power Dissipation | 215mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Responsivity | 0.6A/W |
| Reverse Breakdown Voltage | 60V |
| Reverse Voltage (DC) | 60V |
| RoHS Compliant | Yes |
| Viewing Angle | 120° |
| Wavelength | 950nm |
| Width | 5mm |
| RoHS | Compliant |
