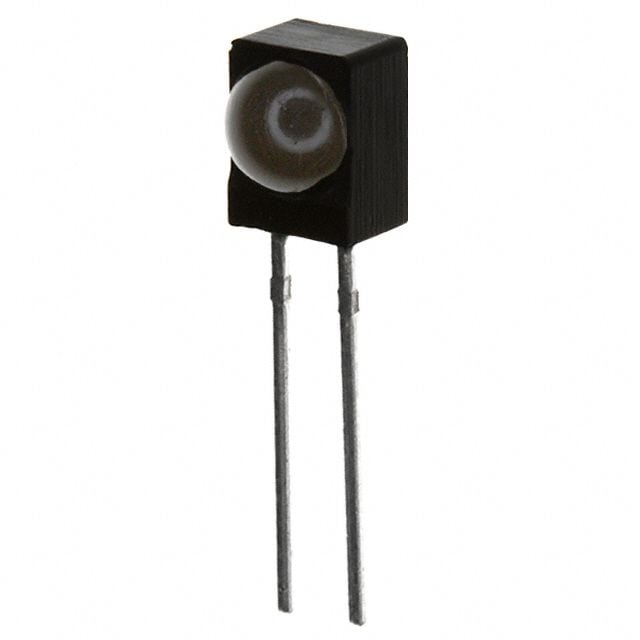

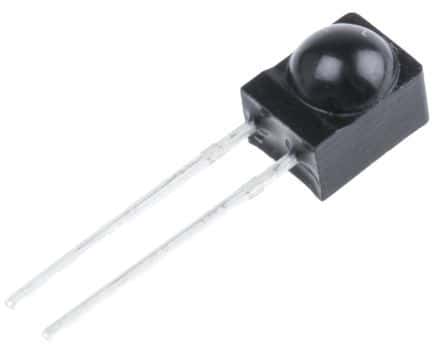

PIN photodiode module with 940nm wavelength and 0.6A/W responsivity. Features a 120° viewing angle and 70pF capacitance. Operates within a -40°C to 100°C temperature range, with a maximum reverse voltage of 60V and 50mA forward current. This through-hole mount component has a 50A current rating and 215mW power dissipation, packaged in bulk.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BPV22NF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay BPV22NF technical specifications.
| Capacitance | 70pF |
| Package/Case | Radial |
| Current Rating | 50A |
| Diode Type | PIN |
| Fall Time | 100ns |
| Forward Current | 50mA |
| Height | 6mm |
| Lead Free | Lead Free |
| Lead Length | 26.5mm |
| Length | 4.5mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 215mW |
| Max Reverse Voltage (DC) | 60V |
| Mount | Through Hole, PCB |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Power Dissipation | 215mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Responsivity | 0.6A/W |
| Reverse Breakdown Voltage | 60V |
| Reverse Voltage (DC) | 60V |
| RoHS Compliant | Yes |
| Viewing Angle | 120° |
| Wavelength | 940nm |
| Width | 5mm |
| RoHS | Compliant |
