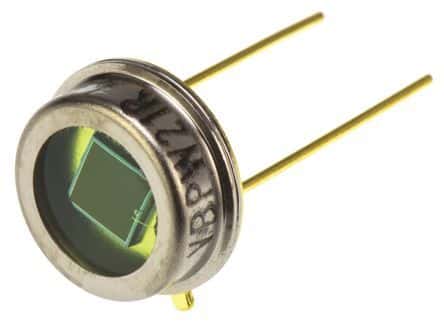

PIN photodiode module with 565nm peak sensitivity, offering 9nA/lx sensitivity. Features a 400pF capacitance and a 3000ns fall time. Encased in a 2-pin TO-5 package with a flat lens style and 100° viewing angle. Operates within a -40°C to 125°C temperature range, with a maximum reverse voltage of 10V and 300mW power dissipation. Through-hole mounting for PCB applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BPW21R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay BPW21R technical specifications.
| Capacitance | 400pF |
| Package/Case | TO-5 |
| Diode Type | PIN |
| Fall Time | 3000ns |
| Forward Current | 50mA |
| Height | 3.1mm |
| Lead Free | Lead Free |
| Lead Length | 14.1mm |
| Length | 9.1mm |
| Lens Style | Flat |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 300mW |
| Max Reverse Voltage (DC) | 10V |
| Mount | Through Hole, PCB |
| Packaging | Bulk |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 10V |
| Reverse Voltage (DC) | 10V |
| RoHS Compliant | Yes |
| Viewing Angle | 100° |
| Wavelength | 565nm |
| Width | 9.1mm |
| RoHS | Compliant |
