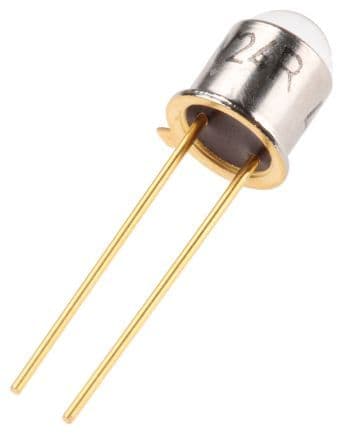

PIN photodiode module with 900nm wavelength and 0.6A/W responsivity. Features a TO-18 package, 7ns fall time, and 24° viewing angle. Operates within a -40°C to 125°C temperature range with a maximum reverse voltage of 60V and 210mW power dissipation. Through-hole mounting for PCB integration, supplied in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BPW24R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay BPW24R technical specifications.
| Package/Case | TO-18 |
| Diode Type | PIN |
| Fall Time | 7ns |
| Height | 6.15mm |
| Lead Free | Lead Free |
| Length | 5.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 210mW |
| Max Reverse Voltage (DC) | 60V |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 210mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Responsivity | 0.6A/W |
| Reverse Breakdown Voltage | 60V |
| Reverse Voltage (DC) | 60V |
| RoHS Compliant | Yes |
| Viewing Angle | 24° |
| Wavelength | 900nm |
| Width | 5.5mm |
| RoHS | Compliant |
