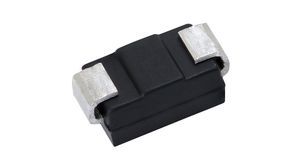

Surface mount rectifier diode with 2A average rectified current and 100V repetitive reverse voltage. Features an avalanche diode type, 2A forward current, and a maximum surge current of 35A. Operates across a temperature range of -55°C to 150°C. Packaged in a compact SMA (DO-214AC) plastic case, this RoHS compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay BYG22B-E3/TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay BYG22B-E3/TR technical specifications.
| Average Rectified Current | 2A |
| Package/Case | SMA |
| Diode Type | Avalanche |
| Forward Current | 2A |
| Height | 2.09mm |
| Length | 4.5mm |
| Max Forward Surge Current (Ifsm) | 35A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 1uA |
| Max Reverse Voltage (DC) | 100V |
| Max Surge Current | 35A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 35A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 25ns |
| Reverse Recovery Time-Max | 25ns |
| Reverse Voltage | 100V |
| RoHS Compliant | Yes |
| Width | 2.79mm |
| RoHS | Compliant |
