Avalanche diode with 600V repetitive reverse voltage and 1A forward current. Features 30A maximum surge current and 30ns reverse recovery time. Operating temperature range from -55°C to 175°C. Through-hole mount, 2-pin SOD-57 package, supplied on tape and reel. Lead-free and RoHS compliant with tin/silver contact plating.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay BYV26C-TR technical specifications.
General
Average Rectified Current
1A
Contact Plating
Tin, Silver
Current Rating
1A
Diameter
3.6mm
Diode Type
Avalanche
Forward Current
1A
Lead Free
Lead Free
Length
0.157inch
Max Forward Surge Current (Ifsm)
30A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
600V
Max Surge Current
30A
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Recovery Time
30ns
Reverse Recovery Time-Max
30ns
Reverse Voltage
600V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay BYV26C-TR Datasheet
Download the complete datasheet for Vishay BYV26C-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

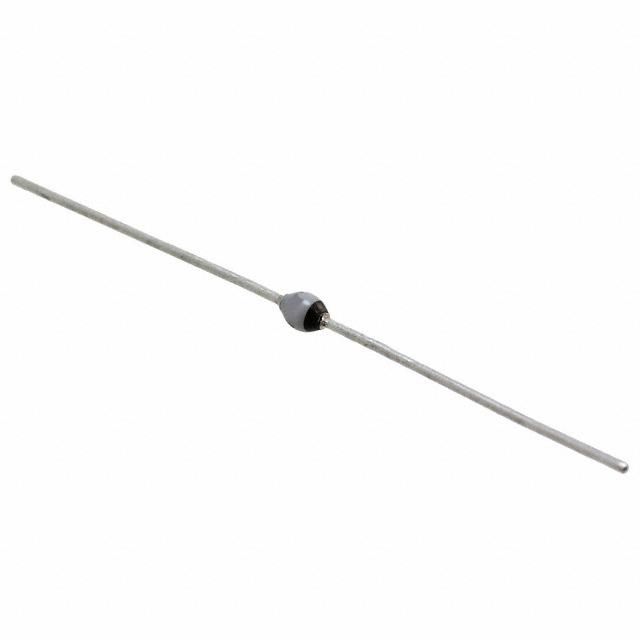

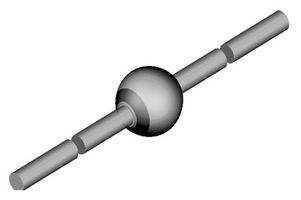

Product Images
