Technical Specifications
Vishay BYV26EGP-E3/54 technical specifications.
General
Average Rectified Current
1A
Package/Case
DO-15
Contact Plating
Tin, Matte
Forward Current
1A
Lead Free
Lead Free
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Reverse Voltage (DC)
1kV
Max Surge Current
30A
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Reverse Recovery Time
75ns
Reverse Voltage
1kV
RoHS Compliant
Yes
Series
SUPERECTIFIER®
Compliance
RoHS
Compliant
Datasheet
Vishay BYV26EGP-E3/54 Datasheet
Download the complete datasheet for Vishay BYV26EGP-E3/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

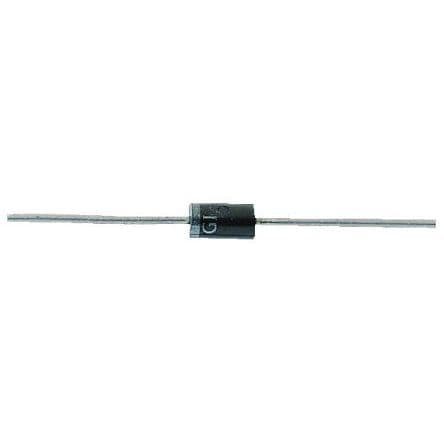

Product Images
