Surface mount carbon film resistor, 0.25W power rating, 4.7kΩ resistance with 2% tolerance. Features automotive AEC-Q200 qualification, operating temperature range of -55°C to +155°C, and a 200V voltage rating. Packaged in a 1406 metric case code (3614) with tin contact plating. RoHS compliant and lead-free.
Package0204
Resistance4.7kR
Voltage Rating200V
Quick Jump:
Technical Specifications
Vishay CMA02040X4701GB300 technical specifications.
General
Body Diameter
1.4mm
Case Code (Metric)
3614
Package/Case
0204
Contact Plating
Tin
Diameter
1.4mm
Features
Automotive AEC-Q200
Lead Free
Lead Free
Length
0.142inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
400mW
Number of Terminations
2
Operating Supply Voltage
200V
Packaging
Cut Tape
Resistance
4.7kR
Resistance Tolerance
2%
Resistor Type
Carbon Film
RoHS Compliant
Yes
Series
CMA
Technology
CARBON FILM
Tolerance
2%
Voltage Rating
200V
DC Rated Voltage
200V
Width
3.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay CMA02040X4701GB300 Datasheet
Download the complete datasheet for Vishay CMA02040X4701GB300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

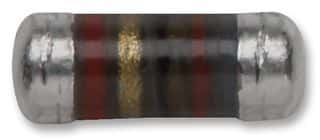

Product Images
