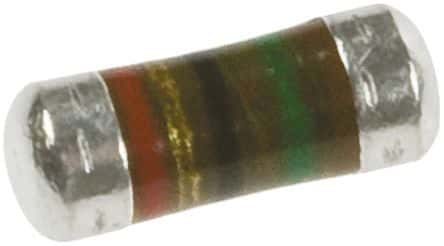

Surface mount carbon film resistor with 1kΩ resistance and 2% tolerance. Features a 0.4W power rating, 500V DC rated voltage, and operates across a -55°C to 155°C temperature range. Automotive AEC-Q200 qualified and RoHS compliant, this component is supplied on tape and reel.
Package0207
Resistance1kR
Voltage Rating500V
Quick Jump:
Technical Specifications
Vishay CMB02070X1001GB200 technical specifications.
General
Package/Case
0207
Contact Plating
Tin
Diameter
5.8mm
Features
Automotive AEC-Q200
Lead Free
Lead Free
Length
0.228inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Number of Terminations
2
Operating Supply Voltage
500V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1kR
Resistance Tolerance
2%
Resistor Type
Carbon Film
RoHS Compliant
Yes
Series
CMB
Technology
CARBON FILM
Tolerance
2%
Voltage Rating
500V
DC Rated Voltage
500V
Compliance
RoHS
Compliant
Datasheet
Vishay CMB02070X1001GB200 Datasheet
Download the complete datasheet for Vishay CMB02070X1001GB200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
