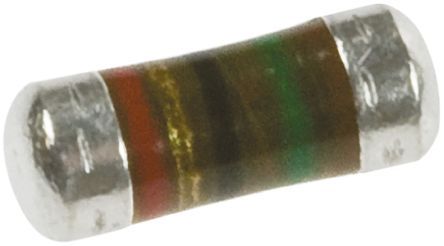

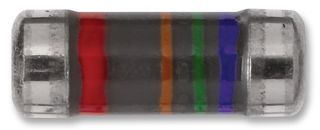

Surface mount carbon film resistor with 100 kΩ resistance and 2% tolerance. Features a 0.4 W power rating and a 500V voltage rating. This MELF component has a diameter of 2.2mm and a length of 5.8mm, with tin contact plating. Operating temperature range is -55°C to 125°C. RoHS compliant and lead-free.
Package0207
Resistance100kR
Voltage Rating500V
Quick Jump:
Technical Specifications
Vishay CMB02070X1003GB200 technical specifications.
General
Package/Case
0207
Contact Plating
Tin
Diameter
2.2mm
Lead Free
Lead Free
Length
5.8mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Operating Supply Voltage
500V
Packaging
Cut Tape
Reach SVHC Compliant
Unknown
Resistance
100kR
Resistance Tolerance
2%
Resistor Type
Carbon Film
RoHS Compliant
Yes
Series
CMA0207
Technology
CARBON FILM
Tolerance
2%
Voltage Rating
500V
DC Rated Voltage
500V
Compliance
RoHS
Compliant
Datasheet
Vishay CMB02070X1003GB200 Datasheet
Download the complete datasheet for Vishay CMB02070X1003GB200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
