Wirewound resistor, 5W power rating, 1 ohm resistance with 5% tolerance. Features axial leaded termination for through-hole mounting, housed in a ceramic package with a rectangular construction. Operating temperature range from -65°C to 275°C. RoHS compliant and lead-free.
PackageCeramic
Resistance1R
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay CP00051R000JE14 technical specifications.
General
Package/Case
Ceramic
Construction
Rectangular
Contact Plating
Tin, Matte
Depth
9.52mm
Height
8.73mm
Lead Diameter
0.914mm
Lead Free
Lead Free
Lead Length
38.1mm
Length
22.22mm
Max Operating Temperature
275°C
Min Operating Temperature
-65°C
Max Power Dissipation
5W
Military Standard
Not
Mount
Through Hole
Number of Terminations
2
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1R
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
CP
Termination
Axial
Tolerance
5%
DC Rated Voltage
2.24V
Width
9.52mm
Compliance
RoHS
Compliant
Datasheet
Vishay CP00051R000JE14 Datasheet
Download the complete datasheet for Vishay CP00051R000JE14 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

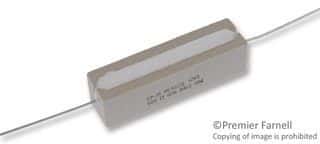

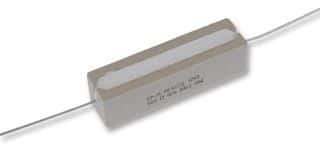

Product Images
