107 Ohm, 1% tolerance thick film chip resistor in a 0201 (0603 metric) SMD package. Features a 30V DC rating, 50mW maximum power dissipation, and operates from -55°C to +155°C. This lead-free, RoHS compliant component has tin contact plating and is supplied on tape and reel.
Package0201
Resistance107R
Voltage Rating30V
Quick Jump:
Technical Specifications
Vishay CRCW0201107RFNED technical specifications.
General
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Package/Case | 0201 |
| Contact Plating | Tin |
| Height | 0.011inch |
| Lead Free | Lead Free |
| Length | 0.024inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 50mW |
| Number of Terminations | 2 |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 107R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW |
| Tolerance | 1% |
| Voltage Rating | 30V |
| DC Rated Voltage | 30V |
| Width | 0.012inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW0201107RFNED Datasheet
Download the complete datasheet for Vishay CRCW0201107RFNED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

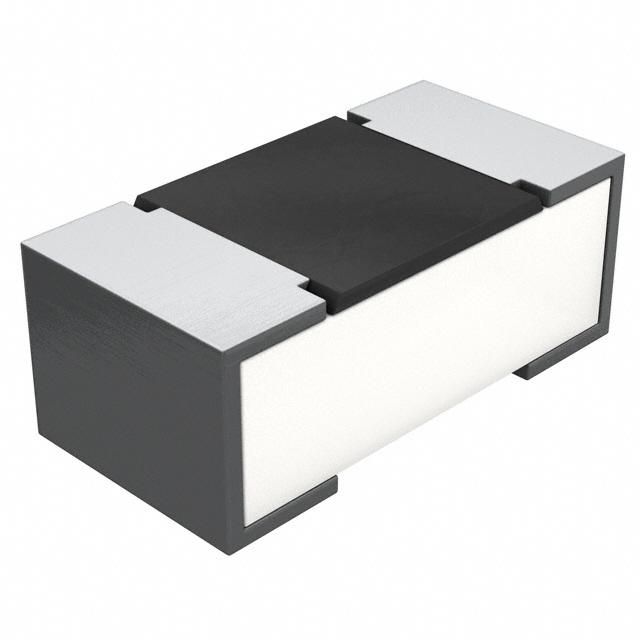

Product Images
