Surface mount thick film chip resistor with 150kΩ resistance and 1% tolerance. Features 0.063W power dissipation, 50V voltage rating, and a 100ppm/°C temperature coefficient. Constructed with metal glaze technology in a 0402 (1005 metric) case size, it offers a wide operating temperature range of -55°C to +155°C and is AEC-Q200 automotive qualified. This lead-free, RoHS compliant component is supplied on tape and reel.
Package0402
Resistance150kR
Voltage Rating50V
Quick Jump:
Technical Specifications
Vishay CRCW0402150KFKED technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Rectangular
Contact Plating
Tin
Depth
0.5mm
Features
Automotive AEC-Q200
Height
0.35mm
Lead Free
Lead Free
Length
1mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
63mW
Number of Terminations
2
Package Quantity
10000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
150kR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
50V
DC Rated Voltage
50V
Weight
2.3E-05oz
Width
0.5mm
Working Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW0402150KFKED Datasheet
Download the complete datasheet for Vishay CRCW0402150KFKED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

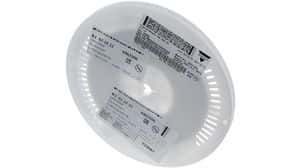

Product Images
