Surface mount thick film chip resistor, 0.1W power rating, 2.2 ohm resistance with 5% tolerance. Features a 75V voltage rating, operating temperature range of -55°C to 155°C, and 200ppm/°C TCR. Housed in a 0603 (1608 metric) case code, this component is RoHS compliant and meets Automotive AEC-Q200 standards.
Package0603
Resistance2.2R
Voltage Rating75V
Quick Jump:
Technical Specifications
Vishay CRCW06032R20JNEAIF technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Depth | 0.85mm |
| Features | Automotive AEC-Q200 |
| Height | 0.02inch |
| Lead Free | Lead Free |
| Length | 0.061inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| Resistance | 2.2R |
| Resistance Tolerance | 5% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW-IF |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 75V |
| DC Rated Voltage | 75V |
| Width | 0.033inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW06032R20JNEAIF Datasheet
Download the complete datasheet for Vishay CRCW06032R20JNEAIF to view detailed technical specifications.
No datasheet is available for this part.

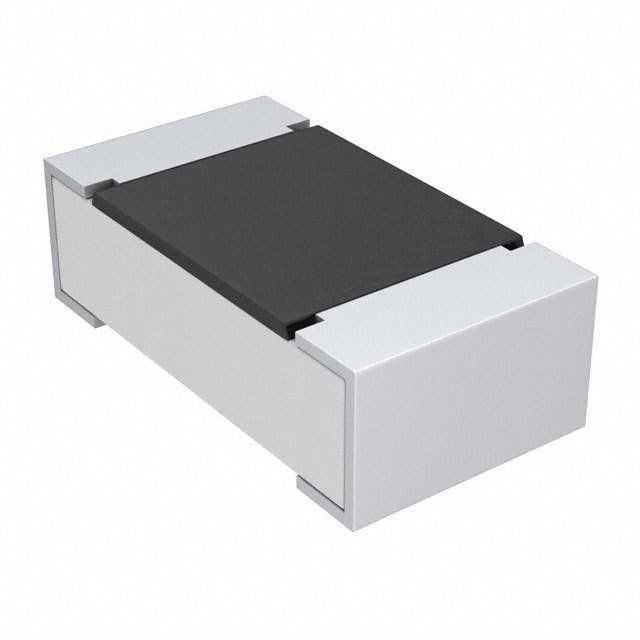

Product Images
