SMD Chip Resistor, Thick Film, 390 ohm resistance with 1% tolerance. Features a 150V voltage rating and 330mW power dissipation in an 0805 (2012 Metric) case size. Constructed with tin contact plating, this lead-free component operates from -55°C to 155°C and is AEC-Q200 qualified. Packaged on tape and reel, it is RoHS compliant.
Package0805
Resistance390R
Voltage Rating150V
Quick Jump:
Technical Specifications
Vishay CRCW0805390RFKEAHP technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 1.25mm |
| Features | Automotive AEC-Q200 |
| Height | 0.024inch |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 500mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 390R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW-HP |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 150V |
| DC Rated Voltage | 150V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW0805390RFKEAHP Datasheet
Download the complete datasheet for Vishay CRCW0805390RFKEAHP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

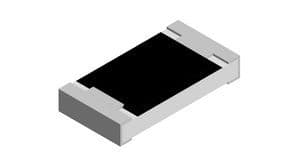

Product Images
