SMD/SMT chip resistor with 68 Ohm resistance and 1% tolerance. Features thick film technology in an 0805 (2012 metric) case code, rated for 150V DC. Offers a wide operating temperature range from -55°C to 155°C and a maximum power dissipation of 333mW. Automotive AEC-Q200 qualified and lead-free, supplied in tape and reel packaging.
Package0805
Resistance68R
Voltage Rating150V
Quick Jump:
Technical Specifications
Vishay CRCW080568R0FKEAHP technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Features | Automotive AEC-Q200 |
| Height | 0.024inch |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 333mW |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 68R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW-HP |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 150V |
| DC Rated Voltage | 150V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW080568R0FKEAHP Datasheet
Download the complete datasheet for Vishay CRCW080568R0FKEAHP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

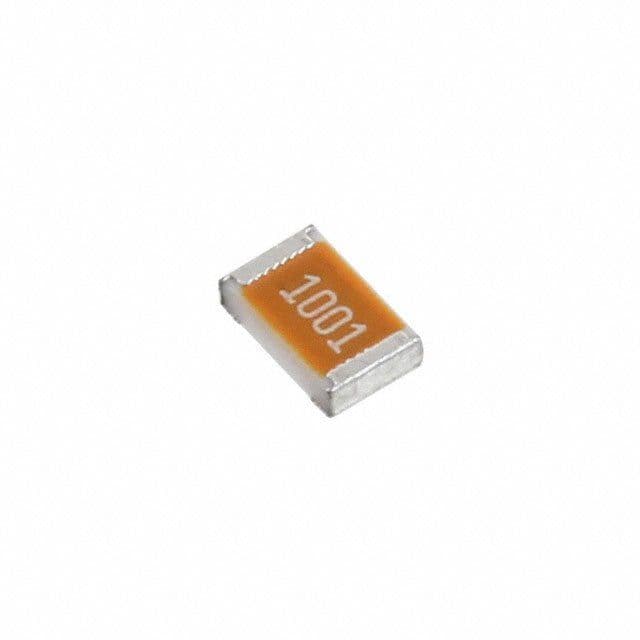

Product Images
