General purpose thick film SMD chip resistor with 14.7 kOhm resistance and 1% tolerance. Features a 1206 [3216 Metric] case code, 250 mW power dissipation, and 200V voltage rating. Operates across a wide temperature range from -55°C to 155°C and is automotive AEC-Q200 qualified. RoHS compliant with tin contact plating.
Package1206
Resistance14.7kR
Voltage Rating200V
Quick Jump:
Technical Specifications
Vishay CRCW120614K7FKEA technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Contact Plating | Tin |
| Depth | 1.6mm |
| Features | Automotive AEC-Q200 |
| Height | 0.55mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Number of Terminations | 2 |
| Package Quantity | 10 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 14.7kR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW |
| Size Code | 1206 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Weight | 0.000353oz |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW120614K7FKEA Datasheet
Download the complete datasheet for Vishay CRCW120614K7FKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

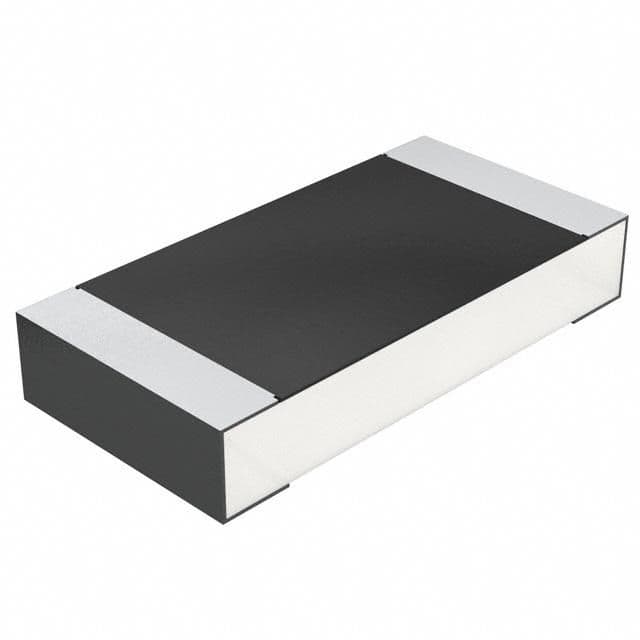

Product Images
