Automotive-grade thick film chip resistor, 220 Ohm resistance with 5% tolerance. Features a 1206 (3216 metric) SMD/SMT package, 250mW power dissipation, and a 200V voltage rating. Operating temperature range from -55°C to 155°C. Constructed with tin contact plating and a rectangular shape, this lead-free and RoHS compliant component is supplied on tape and reel.
Package1206
Resistance220R
Voltage Rating200V
Quick Jump:
Technical Specifications
Vishay CRCW1206220RJNEA technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Rectangular
Contact Plating
Tin
Depth
1.6mm
Features
Automotive AEC-Q200
Height
0.55mm
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
155°C
Max Power Dissipation
250mW
Military Standard
Not
Min Operating Temperature
-55°C
Number of Terminations
2
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
220R
Resistance Tolerance
5%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Size Code
1206
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
5%
Voltage Rating
200V
DC Rated Voltage
200V
Weight
0.000353oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW1206220RJNEA Datasheet
Download the complete datasheet for Vishay CRCW1206220RJNEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

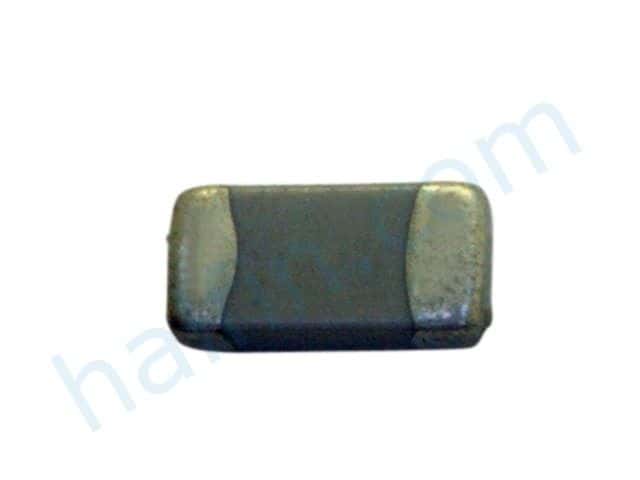

Product Images
