Surface mount thick film chip resistor with 10kR resistance and 1% tolerance. Features 0.5W power dissipation, 200V voltage rating, and a 1210 case size. Operates from -55°C to +155°C, with a temperature coefficient of 100ppm/°C. Automotive AEC-Q200 qualified and RoHS compliant.
Package1210
Resistance10kR
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay CRCW121010K0FKEA technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Construction
Rectangular
Contact Plating
Tin
Depth
2.5mm
Features
Automotive AEC-Q200
Height
0.55mm
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Military Standard
Not
Mount
Surface Mount
Number of Terminations
2
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
10kR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Size Code
1210
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
200V
DC Rated Voltage
200V
Weight
0.000564oz
Width
0.098inch
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW121010K0FKEA Datasheet
Download the complete datasheet for Vishay CRCW121010K0FKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

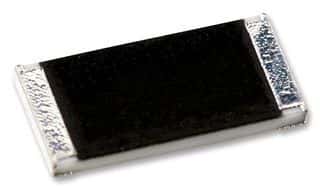

Product Images
