Surface mount thick film fixed resistor, 0.75W power rating, 100kΩ resistance with 1% tolerance. Features a 400V voltage rating, 100ppm/°C temperature coefficient, and operates from -55°C to +155°C. Housed in a 2010 case code (5mm x 2.5mm), it offers tin contact plating and is AEC-Q200 qualified, RoHS compliant, and halogen-free.
Package2010
Resistance100kR
Voltage Rating400V
Quick Jump:
Technical Specifications
Vishay CRCW2010100KFKEF technical specifications.
General
Case Code (Imperial)
2010
Case Code (Metric)
5025
Package/Case
2010
Construction
Rectangular
Contact Plating
Tin
Depth
2.5mm
Features
Automotive AEC-Q200
Height
0.6mm
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
750mW
Military Standard
Not
Number of Terminations
2
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
100kR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Size Code
2010
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
400V
DC Rated Voltage
400V
Weight
0.001372oz
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW2010100KFKEF Datasheet
Download the complete datasheet for Vishay CRCW2010100KFKEF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

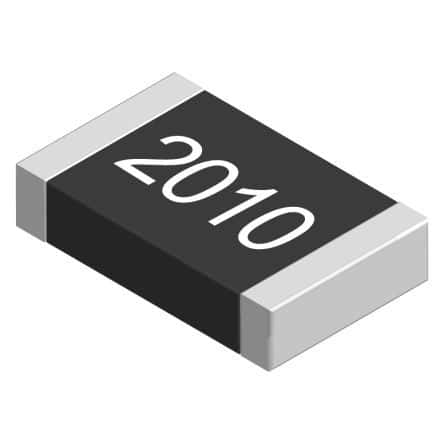

Product Images
